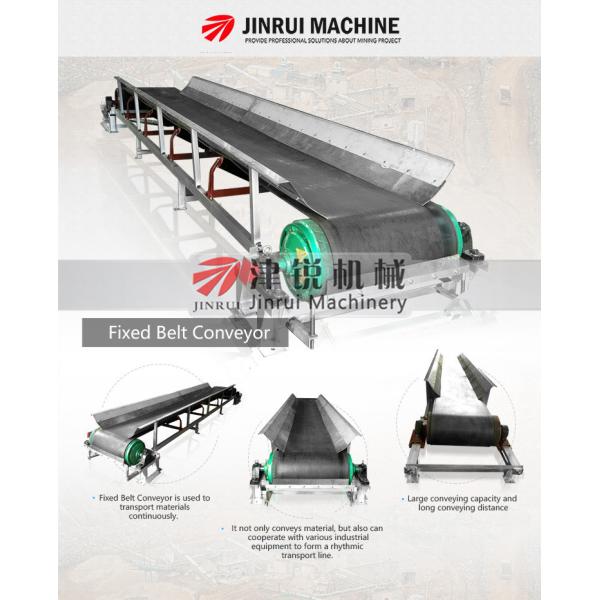

10m Length Electric Pulley Horizontal Ore Belt Conveyors
1. Working principle of belt conveyors:
The electric pulley drives the rotation of the transmission pulley or other driving mechanism through the coupling and reducer, and with the friction between the pulley or other driving mechanism and belt, the belt moves according to the requirements of the conveying process, it can be conveyed in a single pass, or multiple passes or with other belt conveyors to form a horizontal or inclined conveying system.
2. Components of belt conveyors:
The belt conveyors are mainly composed of the following parts: head funnel, drive device (motor, coupling, hydraulic coupler, reducer, drive drum, base), belt, sweeper, groove roller (buffer roller, transition roller, general groove roller), deviation adjustment roller (up offset roller, down deviation roller), lower parallel roller, bracket, follower drum, reversing drum, face increasing roller, heavy hammer tension device, The utility model is composed of tail drum shield, material guide trough, rope pulling device, belt running and eccentric assembly, etc
Belt conveyors normally be used in metallurgy, coal, transportation, electric power, building materials, chemical industry, light industry and machinery industries. Belt conveyors can convey all kinds of bulk materials and articles with bulk density from 500 to 2500 kg/m³, and the applicable ambient temperature is from -20 to 40℃.
Light industry | bags,corn,sawdust,chips,salt,bags,plastic,Distiller's grains and so on. |
| Mining Coal industry | Iron ore , rock,limestone,Blast furnace slag,Anthracite, coke, clean coal, raw coal, dry sand,stone and so on. |
Chemical industry | Silica sand,Aluminum trichloride,fertilizer,cement,Soda ash and so on. |
| Other industry | Solid waste,Exfoliation,Biomass particles and so on. |
3.Technical Parameters of conveyor belt machine
| Belt Width | Section Form | Speed | Max Capacity |
| 800mm | Though | 1.0m/s | 278t/h |
| 1.25m/s | 348t/h |
| 1.6m/s | 445t/h |
| 2.0m/s | 546t/h |
| Flat | 0.8m/s | 118t/h |
| 1.0m/s | 147t/h |
| 1.25m/s | 184t/h |
| 1.6m/s | 236t/h |
| 2.0m/s | 289t/h |
5.FAQ
Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international
Q: How about the price?
A: We are manufacturer, and we can give you lower price than those trade companies.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: What is your payment?
A: Our payment are T/T, L/C, Western Union and Alibaba trade assurance.
